Planetary Ball Mill

< >

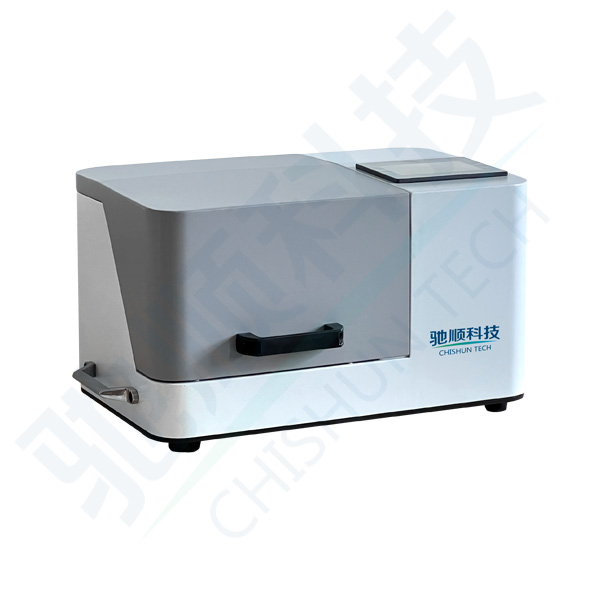

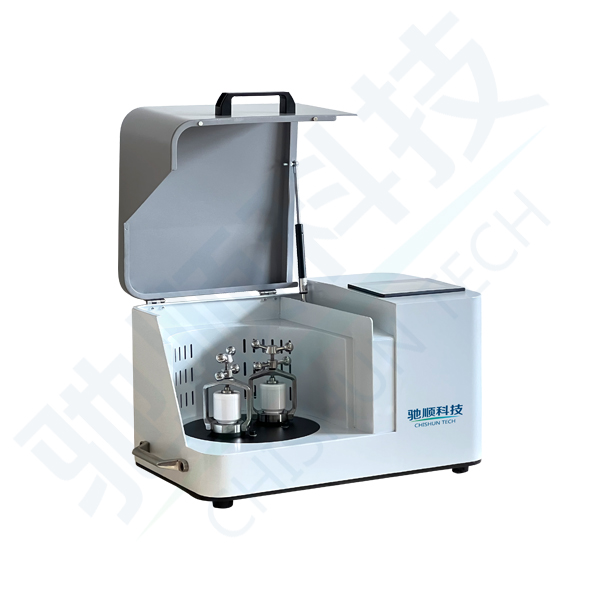

Name： PULVERIZER 80 Planetary Ball Mill

Model： PULVERIZER 80

Introduction： The PULVERIZER 80 double-tank high-energy planetary ball mill is ideal for fast, uniform and ultra-fine grinding of hard, soft, brittle, wet and colloidal samples to a very fine level. The rotation speed of the main disk of the solar wheel of the PULVERIZER80 double-tank high-energy planetary ball mill is as high as 800rpm and the centrifugal force is as high as 50g.

50g1600rpm2*45ml

Parameter
Video
Test case
Clients

The PULVERIZER 80 double-tank high-energy planetary ball mill is ideal for fast, uniform and ultra-fine grinding of hard, soft, brittle, wet and colloidal samples to a very fine level. The rotation speed of the main disk of the solar wheel of the PULVERIZER80 double-tank high-energy planetary ball mill is as high as 800rpm and the centrifugal force is as high as 50g. The products are widely used in medicine, mechanical alloying, sodium ion battery, solid-state battery material grinding and so on.

How it works

The crushing and grinding of materials are mainly realized by high-speed friction and collision between grinding balls. When the plate rotates, the grinding tank with sample material and grinding ball rotates at a high speed around its central axis in the opposite direction. At a certain speed, the centrifugal force separates the sample and the grinding ball from the inner wall of the grinding tank. The grinding ball shuttles back and forth at high speed in the tank, and the sample is further ground by hitting the tank wall. In addition, the impact collision between grinding balls also accelerates the consumption of sample size. The main disk of the solar wheel of the PULVERIZER 80 double-tank high-energy planetary ball mill has a speed of up to 800rpm and a centrifugal force of 50g.

Specifications

Max. feed size	5mm
Jar volume	12ml2、25ml2、45ml2、80ml2
Final fineness	<0.1um
Inert gas grinding	It can be achieved in the glove box
Grinding mode	Dry grinding、Wet griding
Typical griding time	5min
Main disc speed	100-800rpm
Jar speed	1600rpm
Transmission ratio	1:-2
Main disc diameter	290mm
Safety device	Dual safety lock, rotary locking device
Centrifugal acceleration	(g=9.81m/s2):50g
Cooling griding	Supported upon optional cooling device
Certificate	UL、CE
Power	AC220V 50-60Hz 0.75kw
Packaging Details	644038cm
Control mode	7" HMI touch screen, Multiple operation modes (forward and reverse alternating operation, interval operation, timed operation)
Exhaust device	Double fan forced ventilation design, effectively reducing the temperature of the grinding chamber during ball milling process
Jar materials	Stainless steel, vacuum, agate, zirconia, alumina, PTFE, nylon, tungsten carbide，etc.
Competitive Advantage	1、Factory direct delivery 2、Quality assurance 3、Best price 4、Compact in size 5、Complete specifications 6、Service Assurance
